Common Sense Age Rating Overlay

The commonsense Default Overlay File is used to an overlay based on the Common Sense Age Rating on each item within your library.

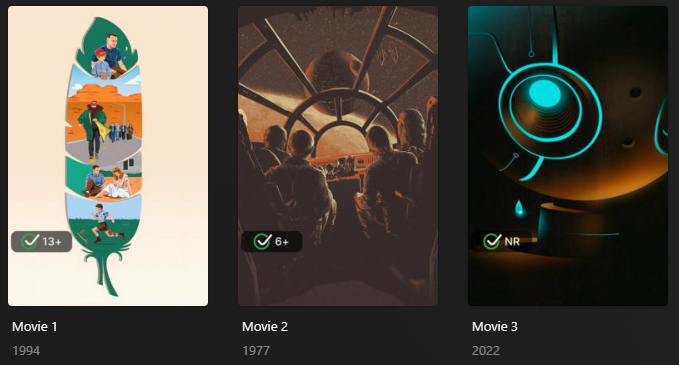

header image

Requirements & recommendations

Supported Overlay Level: Movie, Show, Season, Episode

Requirements: Use the Mass Content Rating Update Library Operation with either mdb_commonsense or mdb_commonsense0 to update Plex to the Common Sense Rating.

Supported Common Sense age ratings

Rating Key
1+ 1
2+ 2
3+ 3
4+ 4
5+ 5
6+ 6
7+ 7
8+ 8
9+ 9
10+ 10
11+ 11
12+ 12
13+ 13
14+ 14
15+ 15
16+ 16
17+ 17
18+ 18
NR nr

Config

The below YAML in your config.yml will create the overlays:

libraries:
  Movies:
    overlay_files:
      - default: commonsense
  TV Shows:
    overlay_files:
      - default: commonsense
      - default: commonsense
        template_variables:
          builder_level: episode
      - default: commonsense
        template_variables:
          builder_level: season

Template variables

Template Variables can be used to manipulate the file in various ways to slightly change how it works without having to make your own local copy.

Note that the template_variables: section only needs to be used if you do want to actually change how the defaults work. Any value not specified will use its default value if it has one if not it's just ignored.

Example Template Variable Amendments (Click to Expand)

The below is an example config.yml extract with some Template Variables added in to change how the file works.

Click the icon to learn more

libraries:
  Movies:
    overlay_files:
      - default: commonsense
        template_variables:
          pre_text: "Age " #(1)!

  1. Wlll prepend "CS" to the text of the overlays, for example "Age 1"
  • File-Specific Template Variables are variables available specifically for this Kometa Defaults File.

  • Overlay Template Variables are additional variables shared across the Kometa Overlay Defaults.

Default Template Variable Values (Click to Expand)
Variable Default
horizontal_offset 15
horizontal_align left
vertical_offset 270
vertical_align bottom
back_color #00000099
back_radius 30
back_width 305
back_height 105
Variable Description Values
pre_text Choose the text before the key for the Overlay. Any String
post_text Choose the text after the key for the Overlay. Default: +
Any String
pre_nr_text Choose the text before the nr key for the Overlay. Any String
post_nr_text Choose the text after the nr key for the Overlay. Any String
addon_offset Text Addon Image Offset from the text. Default: 15
Any number greater than 0
addon_position Text Addon Image Alignment in relation to the text. Default: left
left, right, top, bottom
builder_level Choose the Overlay Level. season or episode
  1. Each default collection has a key that you must replace <<key>> with when using this Template Variable. These keys are found in the table at the top of this page.

When something in this table is noted as expecting a number, typically that number is expressed in pixels, assuming an image 1000x1500 in size.

If the number is an offset, the value is relative to the corresponding alignment. Percentages are also relative to the alignment.

For example:

libraries:
  Movies:
    overlay_files:
      - default: commonsense
        template_variables:
          horizontal_align: left
          horizontal_offset: 247
          vertical_align: bottom
          vertical_offset: 40%
That would place the commonsense overlay 247 pixels in from the left edge of the poster, and 40% of the way up from the bottom.

libraries:
  Movies:
    overlay_files:
      - default: commonsense
        template_variables:
          back_width: 198
          back_height: 47
That would set the commonsense overlay background to 198 pixels wide by 47 pixels high.

Color values should be wrapped in quotes in the YAML, as the # denotes a comment in YAML and if left unquoted will prevent the value from being seen by Kometa.

File paths need to be valid in the context where Kometa is running; this is primarily an issue when running in docker, as Kometa inside the container cannot see host paths.

Variable Description Values
back_align Controls the Alignment for the Text Overlay inside the backdrop. If back_align is not specified the Backdrop Centers the text. left, right, center, top, or bottom
back_color Controls the Backdrop Color for the Text Overlay. Color Hex Code in format #RGB, #RGBA, #RRGGBB or #RRGGBBAA
AA is transparency; 00 [transparent] to FF [opaque]
back_height Controls the Backdrop Height for the Text Overlay. If back_height is not specified the Backdrop Sizes to the text Any number greater than 0 [pixels assuming a 1000x1500 image]
back_line_color Controls the Backdrop Line Color for the Text Overlay. Color Hex Code in format #RGB, #RGBA, #RRGGBB or #RRGGBBAA``AA is transparency; 00 [transparent] to FF [opaque]
back_line_width Controls the Backdrop Line Width for the Text Overlay. Any number greater than 0 [pixels assuming a 1000x1500 image]
back_padding Controls the Backdrop Padding for the Text Overlay. Any number greater than 0 [pixels assuming a 1000x1500 image]
back_radius Controls the Backdrop Radius for the Text Overlay. Any number greater than 0 [pixels assuming a 1000x1500 image]
back_width Controls the Backdrop Width for the Text Overlay. If back_width is not specified the Backdrop Sizes to the text Any number greater than 0 [pixels assuming a 1000x1500 image]
file_<<key>> Controls the image associated with this key's Overlay to a local file. Filepath to Overlay Image
file Controls the images associated with all the Overlays to a local file. Filepath to Overlay Image
git_<<key>> Controls the image associated with this key's Overlay to the git repo. Git Path to Overlay Image
git Controls the images associated with all the Overlays to the git repo. Git Path to Overlay Image
horizontal_align Controls the Horizontal Alignment of the overlay. left, center, or right
horizontal_offset Controls the Horizontal Offset of this overlay. Can be a %. Number 0 or greater or 0%-100% [pixels assuming a 1000x1500 image]
repo_<<key>> Controls the image associated with this key's Overlay to a custom repo. Repo Path to Overlay Image
repo Controls the images associated with all the Overlays to a custom repo. Repo Path to Overlay Image
url_<<key>> Controls the image associated with this key's Overlay to a url. URL to Overlay Image
url Controls the images associated with all the Overlays to a url. URL to Overlay Image
use_<<key>> Turns off individual Overlays in a Defaults File. false to turn off the overlay
vertical_align Controls the Vertical Alignment of the overlay. top, center, or bottom
vertical_offset Controls the Vertical Offset of this overlay. Can be a %. Number 0 or greater or 0%-100% [pixels assuming a 1000x1500 image]

Default value source

This is a reference showing the source of the data used in this Defaults File.

Nothing in this section is required for using the Defaults File, but it can be useful for understanding where the data comes from.

Nothing in this section is directly useful for customizing this Defaults File.

Nothing here is a code example for end user use. It all looks like code, since it is taken directly from the Kometa source code to ensure it is up-to-date and accurate, but it is not intended for end user use, and is expressed in a different format to the way you would customize the defaults via Template Variables.

I want to customize this default

To learn how to customize any Defaults File using Template Variables see the Defaults Usage Guide.

Each Defaults File has its own set of Template Variables, which are used to control the behavior of that default. The Template Variables for this file can be found here.

I want to know what's behind the defaults

The lists provided here are for reference to show what values will be in use if no customization is done.

These do not show how to customize the defaults.

Nothing here is a code example for end user use. It all looks like code, since it is taken directly from the Kometa source code to ensure it is up-to-date and accurate, but it is not intended for end user use.

These lists are provided for reference only.

If you want to customize these collections, refer to the Defaults Usage Guide to learn how to use Template Variables.

The Common Sense Age Rating overlays use the plex_search Builder with filters on a set of content ratings and map them into a single content rating as requested.
