Kometa Ratings Explained

As of Kometa v2.4.5, there are two methods for placing ratings on posters using the ratings Defaults file:

  1. Direct Rating Overlays (preferred method) fetches ratings directly from the configured source during the overlay run.
  2. Plex Rating Slots Overlays (legacy method) reads Plex's critic, audience, and user rating fields. If you want those fields to contain ratings from IMDb, TMDb, Trakt, MDBList, or similar sources, you must first use Library Operations to write those values into Plex.

We recommend the first method. It keeps Plex's own rating fields intact and skips Library Operations entirely, which means faster runs and ratings that always match the source.

Direct Rating Overlays

The ratings default overlay now accepts source names directly in rating1, rating2, and rating3.

Direct-source ratings overlay
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: plex_tomatoes
          rating2: mdb_metacritic
          rating3: trakt

Kometa fetches Rotten Tomatoes (from Plex), Metacritic (via MDBList), and Trakt, and picks matching icons for each automatically.

No operations block is required for those three ratings. Kometa fetches the values at overlay time and places them on the image. Fetched values are cached and reused for a while rather than pulled fresh every run — see Caching below.

Source Names

The ratings overlay can use critic, audience, and user, but those three names are special: they mean "read the value already stored in Plex."

All other supported values are fetched directly from their source or integration:

Source key Rating displayed
imdb IMDb rating
tmdb TMDb rating
trakt Trakt public rating
trakt_user Your Trakt user rating
mdb MDBList score
mdb_average MDBList average
mdb_imdb IMDb rating through MDBList
mdb_metacritic Metacritic rating through MDBList
mdb_metacriticuser Metacritic user rating through MDBList
mdb_trakt Trakt rating through MDBList
mdb_tomatoes Rotten Tomatoes critic rating through MDBList
mdb_tomatoesaudience Rotten Tomatoes audience rating through MDBList
mdb_tmdb TMDb rating through MDBList
mdb_letterboxd Letterboxd rating through MDBList
mdb_myanimelist MyAnimeList rating through MDBList
omdb IMDb rating through OMDb (OMDb-branded icon)
omdb_imdb IMDb rating through OMDb (IMDb-branded icon)
omdb_metascore Metacritic metascore through OMDb
omdb_tomatoes Rotten Tomatoes rating through OMDb
plex_imdb IMDb rating from Plex's available ratings data
plex_tmdb TMDb rating from Plex's available ratings data
plex_tomatoes Rotten Tomatoes critic rating from Plex's available ratings data
plex_tomatoesaudience Rotten Tomatoes audience rating from Plex's available ratings data
anidb AniDB permanent rating
anidb_average AniDB temporary average
anidb_score AniDB review score
mal MyAnimeList score

Most of these source keys are also used by the Mass Rating Update operations, but in the new setup they are used directly by the overlay instead of being written into Plex first. Two exceptions: the operations equivalent of anidb is named anidb_rating, and omdb_imdb has no operations equivalent — it's only available as a direct overlay source.

Not every source works at every level. Episode overlays only support audience, critic, user, tmdb, and imdb — anything else (mdb_*, omdb_*, trakt, anidb, mal, plex_*) is silently skipped. Season overlays only support user and tmdb. If a rating overlay isn't showing up at those levels, check the source is on this shorter list first.

Images

For direct-source configs, you do not need to set rating1_image, rating2_image, or rating3_image.

Let Kometa pick the images
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: mdb_tomatoes
          rating2: mdb_tomatoesaudience
          rating3: imdb

Kometa will select the Rotten Tomatoes critic image for mdb_tomatoes, the Rotten Tomatoes audience image for mdb_tomatoesaudience, and the IMDb image for imdb.

You can still override the image when you want a different display style:

Override a rating image
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: mdb_trakt
          rating1_image: trakt
          rating2: tmdb
          rating3: imdb

Use image overrides carefully. The image is only presentation; it does not change which rating value is fetched.

Fresh, Rotten, and Top Badges

Notice the Certified Fresh tomato on the Amadeus and Babygirl posters above, and the plain tomato on Sharkboy and Lavagirl? Kometa picks that automatically based on the fetched value.

By default, a rating at or above 6.0 (on Kometa's normalized 0–10 scale, so 60%) gets the Fresh/Certified-Fresh treatment; below that, it gets the Rotten treatment. You can move that line with three template variables:

Variable Default Controls
fresh_rating 6.0 The cutoff between Fresh and Rotten
minimum_rating 0.0 The lowest value treated as valid
maximum_rating 10.0 The highest value treated as valid
Raise the Fresh threshold to 7.0
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: plex_tomatoes
          rating2: mdb_metacritic
          rating3: trakt
          fresh_rating: 7.0

One quirk worth knowing: for plex_tomatoes, mdb_tomatoes, plex_tomatoesaudience, and mdb_tomatoesaudience specifically, a Fresh result uses a distinct "Direct" tomato icon rather than the standard Certified Fresh badge. That's intentional — it signals the Fresh/Rotten call was computed by Kometa from the fetched number, not officially awarded by Rotten Tomatoes. If you see a tomato icon that looks slightly different from what you're used to, that's why.

Filtering Items by Rating

Beyond swapping the icon, you can stop an overlay from applying at all below a threshold using value_filter — a separate overlay-file attribute that filters items at selection time based on the fetched rating.

overlays:
  RT Fresh:
    overlay:
      name: text(mdb_tomatoes_rating)
      default: rating/RT-TomatoFresh.png
    value_filter:
      mdb_tomatoes_rating.gte: 6.0

This only applies the overlay to items whose mdb_tomatoes_rating is 6.0 or higher; everything else is excluded from that overlay entirely, rather than just getting a different badge. See Value Filter for the full syntax, comparators, and how it combines with filters.

Caching

Fetched rating values aren't pulled fresh on every run. Kometa writes them to a local cache and reuses that value until it expires, based on the cache_expiration setting (default 60 days, set under settings in your config). The badge selection (Fresh/Rotten/Top) and the number displayed on the poster both come from that same cached value, so both update together the next time the cache refreshes.

Direct Ratings and Plex Ratings

Direct-source overlays do not change the ratings shown in the Plex UI. Plex may still show Rotten Tomatoes icons and values while the poster overlay shows IMDb, TMDb, Trakt, or MDBList values.

That is expected. The overlay is drawn onto the poster image by Kometa; Plex's rating fields are not modified unless you configure Library Operations.

When Operations Are Still Needed

You still need Library Operations when your overlay uses critic, audience, or user and you want those Plex slots populated from another source. This can be useful if you want the ratings in Plex's UI to directly match the ratings shown on the poster.

Plex-slot ratings still need operations
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating2: audience
          rating3: user
    operations:
      mass_critic_rating_update: mdb_trakt
      mass_audience_rating_update: tmdb
      mass_user_rating_update: imdb

In that config, rating1, rating2, and rating3 are not fetching Trakt, TMDb, or IMDb directly. They are reading Plex's critic, audience, and user rating slots. The operations block is what puts the selected external ratings into those Plex slots.

This is not a recommended approach, as using Library Operations will increase runtimes. Instead, you should put the mdb_trakt, tmdb and imdb data into the ratingX values.

Examples

IMDb, TMDb, and Trakt without changing Plex
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: imdb
          rating2: tmdb
          rating3: mdb_trakt
Use Plex's current rating slots
libraries:
  Movies:
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating2: audience
          rating3: user

Legacy Setup: Plex Rating Slots Overlays

The legacy method uses Plex's three rating fields:

  • critic
  • audience
  • user

Each thing in Plex that can have a rating [movie, show, episode, album, track] has those three ratings "boxes" or "fields".

The Critic and Audience ratings are typically managed by Plex, pulling from whatever you specify as the ratings source for the library; this is what determines the images that are displayed in the Plex UI. The User rating is the star rating assigned by you to the item.

Kometa can insert a broader range of values into those fields than Plex supports natively, then it can leverage those values in overlays and the like.

It's doing this "behind Plex's back", so there can be some seeming inconsistencies in the way things are displayed in the UI. The rest of this guide explains the legacy method.

Setup

Here's our starting point if you want to run through this yourself:

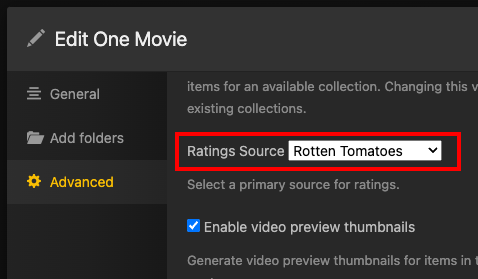

Set up a brand new Library with only one movie in it. Ensure the Ratings source on the library is set to Rotten Tomatoes:

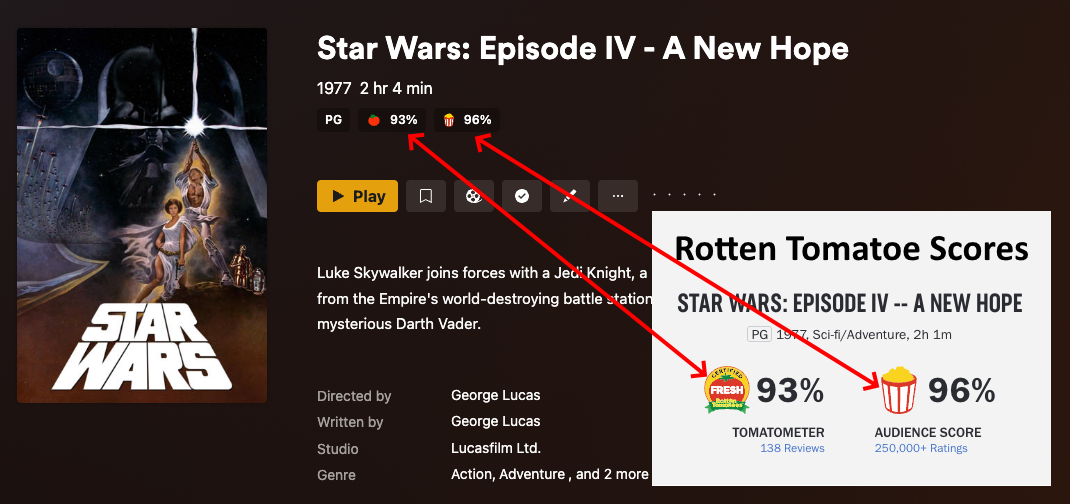

The Plex UI shows the correct ratings and icons for Rotten Tomatoes and is aligned with the Rotten Tomatoes site:

Also note that we have not given this a user rating.

Initial Overlay

Now let's add rating overlays to the poster. We're going to use the minimal config needed here to illustrate the concepts.

Initial minimal config
libraries:
  One Movie:
    reapply_overlays: true
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating1_image: rt_tomato
          rating2: audience
          rating2_image: rt_popcorn
          rating3: user
          rating3_image: imdb
  • rating1, rating1_image, rating2, rating2_image are set to match the ratings that Plex already has assigned to those fields (critic/audience). The order here is arbitrary.
  • rating3 is set to be the user rating and its image (rating3_image) is set to IMDb just because we have to pick something.
  • reapply_overlays is set to true to ensure that Kometa always updates the overlays as we run things. This should NEVER be required in a typical scenario, it's being done here just as belt-and-suspender insurance.
  • reapply_overlays: true should NEVER be used in a live/production environment without a very specific reason. Make sure to switch this back to false when finished.

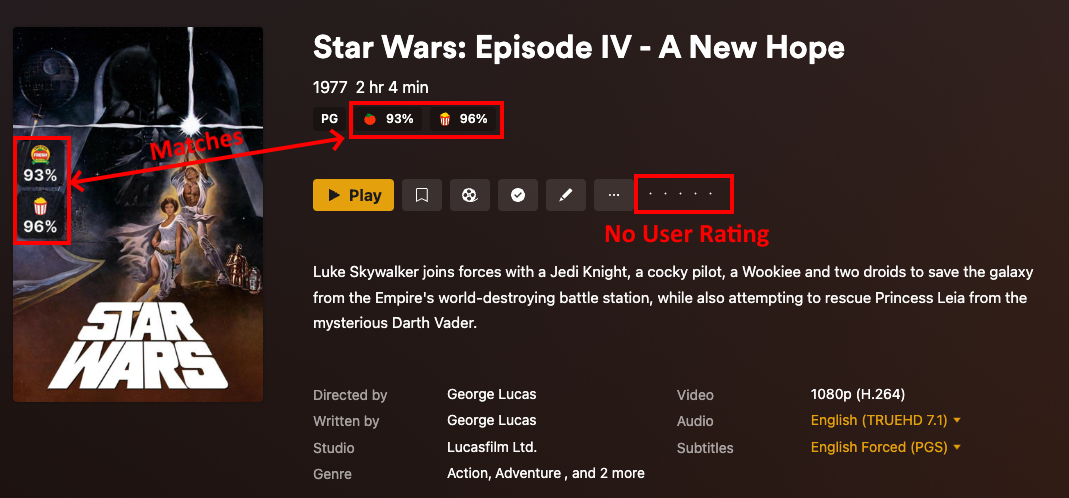

After Kometa is run on this library, you'll get this result:

  • Kometa has added those two ratings to the poster using the values already stored with the movie. The icons and values are correctly associated simply because we made sure they are in the config file.
  • The two ratings match, and there is no IMDb rating icon on the poster since there is no user rating. (no star rating on the right)

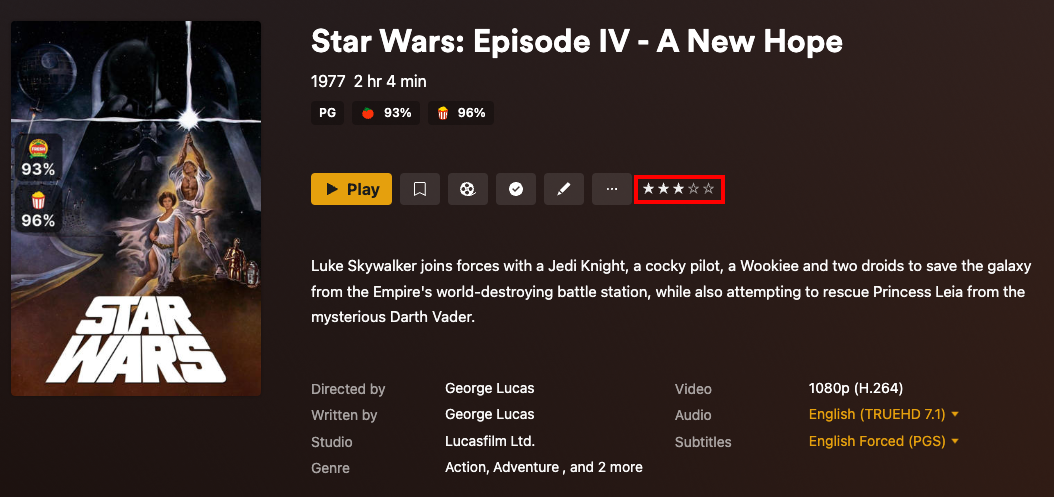

Now we're going to add a user rating by clicking the middle star on the right for a rating of 3/5:

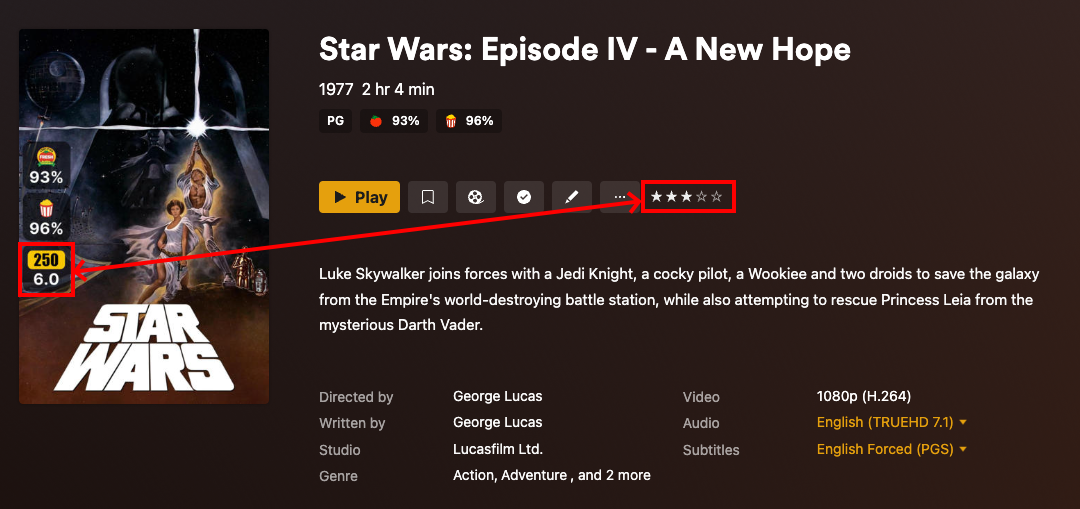

Now just run Kometa again without changing anything else and the user rating overlay will appear:

  • Kometa added the third rating overlay, since there is now a value in the user rating.
  • It gave it an IMDb icon because we told it to in the config file. (Why does it say 250 instead of IMDb?)
  • It's displaying 6.0 since 3 stars on a 5-star scale is 60%.

Change Rating Image

You and I both know that the IMDb rating isn't 6.0, but Kometa is just doing what it's told. Nobody but us humans know where those numbers come from.

As an example, let's change the icons to show that Kometa does not know or care where Plex-slot values came from:

Updated config
libraries:
  One Movie:
    reapply_overlays: true
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating1_image: imdb
          rating2: audience
          rating2_image: imdb
          rating3: user
          rating3_image: imdb
  • rating1_image and rating2_image were both changed from rt_tomato and rt_popcorn respectively to imdb.
  • reapply_overlays: true should NEVER be used in a live/production environment without a very specific reason. Make sure to switch this back to false when finished.

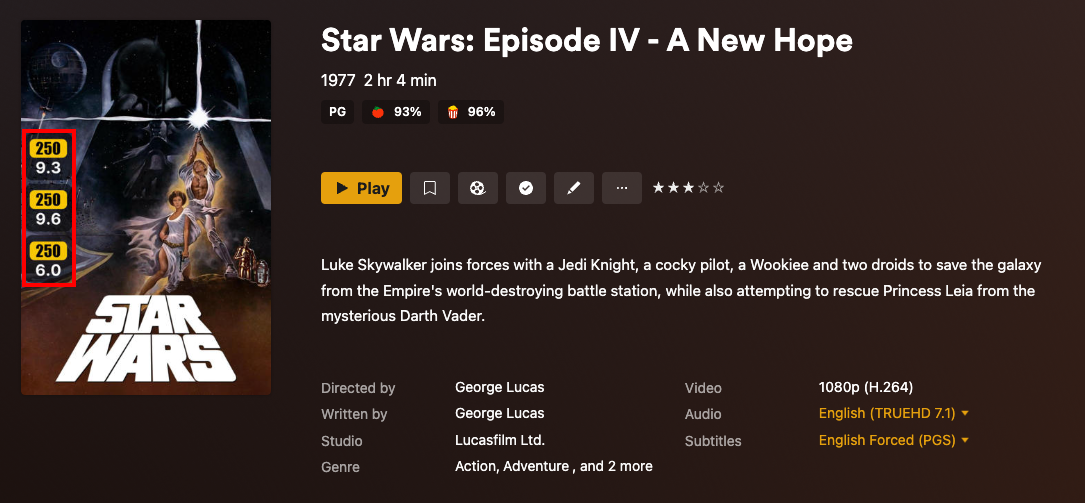

When the above is run you see this result:

  • Three different ratings on the poster, all IMDb; all while the Plex UI still shows RT icons.
  • Note that the existing RT ratings numbers (93% and 96%) display on the poster as 9.3 and 9.6. This is happening because we just told Kometa that those ratings were IMDb, and IMDb ratings are on a 1-10 scale. Kometa does not know where those numbers are from; it places the value from the configured Plex rating box onto the poster.
  • That first overlay showing an IMDb rating of 9.3 is not evidence that Kometa pulled the wrong IMDb rating. It just shows that it has been told to display the number in the critic rating box as an IMDb rating.

Update User Ratings

Now let's actually update the ratings and push some numbers into those boxes using library operations. We'll start with making that user rating accurate:

Updated config
libraries:
  One Movie:
    reapply_overlays: true
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating1_image: rt_tomato
          rating2: audience
          rating2_image: rt_popcorn
          rating3: user
          rating3_image: imdb
    operations:
      mass_user_rating_update: imdb
  • operations with the attribute mass_user_rating_update set to imdb is added.
  • rating1_image and rating2_image were both changed back to rt_tomato and rt_popcorn respectively from imdb.
  • reapply_overlays: true should NEVER be used in a live/production environment without a very specific reason. Make sure to switch this back to false when finished.

This will put the actual IMDb rating value, retrieved from IMDb, into the user rating field.

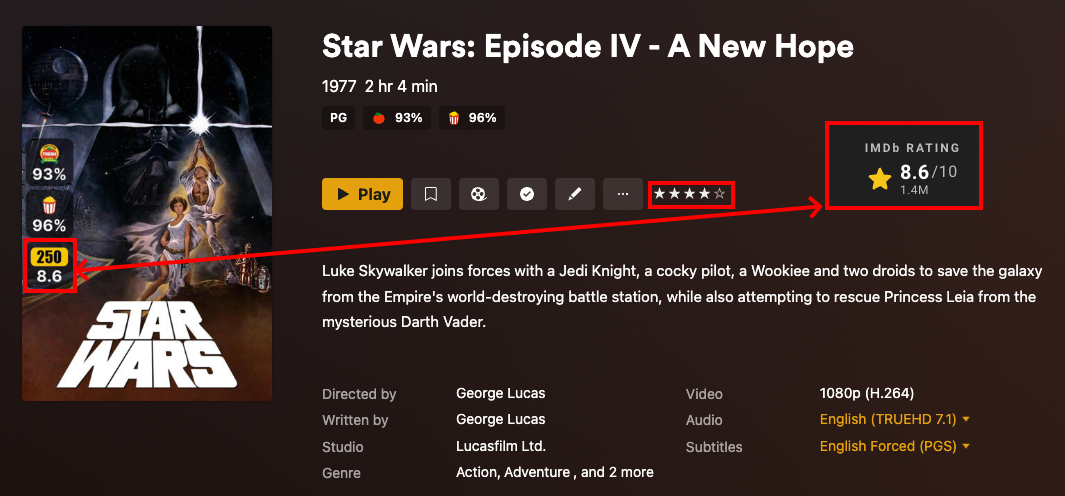

After that has been run, we see:

  • The IMDb Rating Overlay on the poster matches the rating from the IMDb page for Star Wars.
  • The number of stars has also changed to 4 stars. (since 8.6 split in half is 4.3 and then rounded down to the nearest half gives you 4 stars)

Update Critic & Audience Ratings

Now let's update the critic and audience ratings to some different ratings:

Updated config
libraries:
  One Movie:
    reapply_overlays: true
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating1_image: rt_tomato
          rating2: audience
          rating2_image: rt_popcorn
          rating3: user
          rating3_image: imdb
    operations:
      mass_critic_rating_update: trakt_user
      mass_audience_rating_update: tmdb
      mass_user_rating_update: imdb
  • under operations the attribute mass_critic_rating_update set to trakt_user and mass_audience_rating_update set to tmdb are added.
  • reapply_overlays: true should NEVER be used in a live/production environment without a very specific reason. Make sure to switch this back to false when finished.

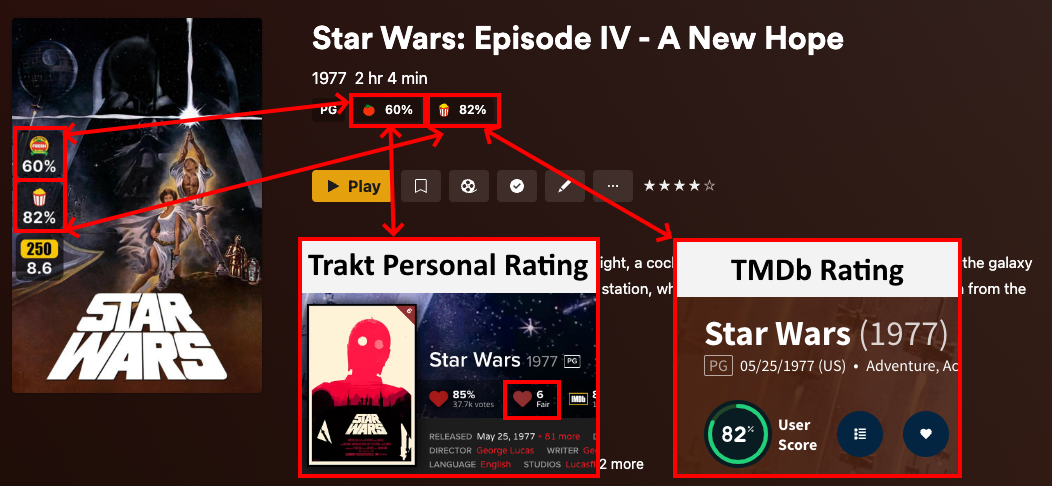

Running the above will put the Trakt user's personal rating into the critic box and the TMDb rating into the audience box. Note that we haven't changed the rating images yet.

  • Critic rating matches the Trakt personal user rating of 6, which is displayed as 60%.
  • Audience rating matches the TMDb rating of 82%.
  • Note how the values have changed dramatically and all match between the overlay, Plex ratings, and external sites.

The log will show Kometa updating those values.

| Processing: 1/1 Star Wars: Episode IV - A New Hope     |
| Batch Edits                                            |
| Audience Rating | 8.2                                  |
| Critic Rating | 6.0                                    |
  • And the poster reflects those numbers, though with the wrong icons, since that's what Kometa has been told to do.
  • The Plex UI still shows RT icons, and it always will, even though the numbers displayed are no longer RT ratings. Plex has no idea.

Use Trakt Rating

Let's change the Trakt rating to that Trakt public rating of 85% instead, which is available via MDBList:

Updated config
libraries:
  One Movie:
    reapply_overlays: true
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating1_image: rt_tomato
          rating2: audience
          rating2_image: rt_popcorn
          rating3: user
          rating3_image: imdb
    operations:
      mass_critic_rating_update: mdb_trakt
      mass_audience_rating_update: tmdb
      mass_user_rating_update: imdb
  • under operations the attribute mass_critic_rating_update was changed to mdb_trakt from trakt_user. (This step requires MDBList to be configured)
  • reapply_overlays: true should NEVER be used in a live/production environment without a very specific reason. Make sure to switch this back to false when finished.
Note on mdb sources

MDBList is not a live reflection of third-party sites such as CommonSense and Trakt. The data on MDBList is often days, weeks and months out of date as it is only periodically refreshed. As such, the data that Kometa applies using mdb_ operations may not be the same as you see if you visit those third-party sources directly.

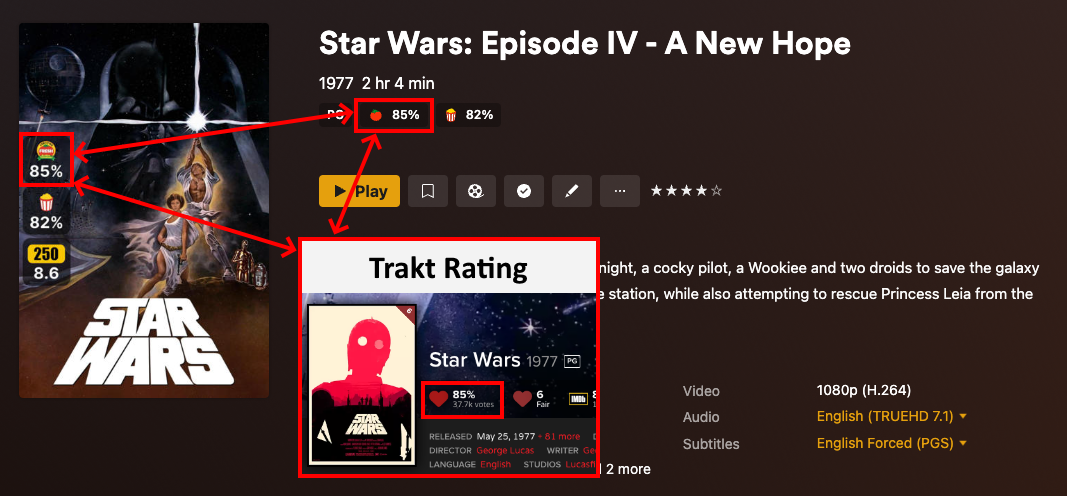

When the above is run you should get:

  • Note how the 60% in rating1 became 85%.

Use Proper Images

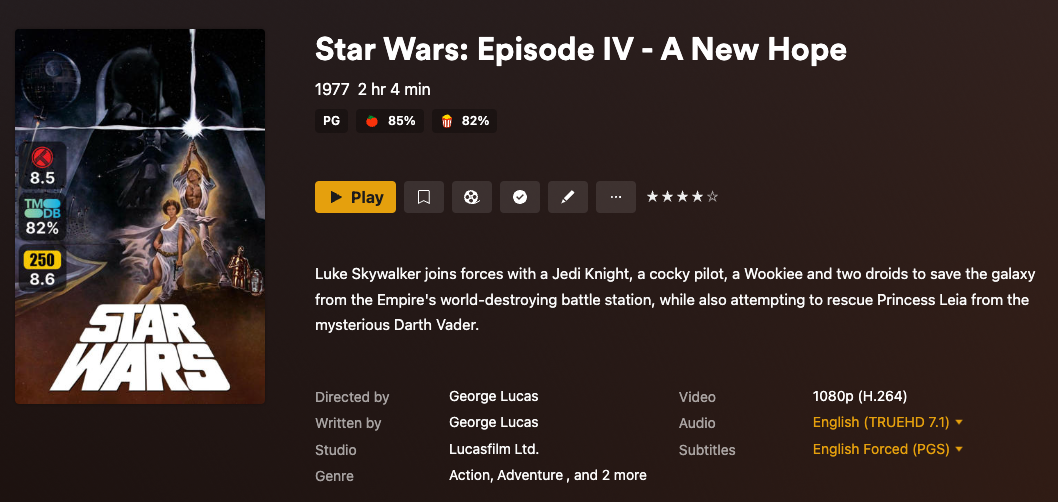

Now, finally, let's make the poster rating images match the numbers we put in there:

Click to see the updated config
libraries:
  One Movie:
    reapply_overlays: true
    overlay_files:
      - default: ratings
        template_variables:
          rating1: critic
          rating1_image: trakt
          rating2: audience
          rating2_image: tmdb
          rating3: user
          rating3_image: imdb
    operations:
      mass_critic_rating_update: mdb_trakt
      mass_audience_rating_update: tmdb
      mass_user_rating_update: imdb
  • rating1_image was changed to trakt from rt_tomato.
  • rating2_image was changed to tmdb from rt_popcorn.
  • reapply_overlays: true should NEVER be used in a live/production environment without a very specific reason. Make sure to switch this back to false when finished.
Note on mdb sources

MDBList is not a live reflection of third-party sites such as CommonSense and Trakt. The data on MDBList is often days, weeks and months out of date as it is only periodically refreshed. As such, the data that Kometa applies using mdb_ operations may not be the same as you see if you visit those third-party sources directly.

When the above is run you should get:

This config file is the only linkage between the ratings we are setting and the icons we want displayed, as we've seen above.

You can see that the Plex UI still shows the RT icons with the Trakt and TMDb numbers we put into the relevant fields, since again, it has no idea those numbers got changed behind its back.

The poster displays the correct icons because we told Kometa to do so in the config file.

Why do different Images appear for the same source?

As seen in the images above, the IMDb rating image says 250 instead of IMDb and the Rotten Tomatoes rating images have the Certified Fresh logo vs their normal logo.

This is because Star Wars: Episode IV - A New Hope is in the IMDb Top 250 list as well as being Certified Fresh by Rotten Tomatoes, and that gets reflected by the rating image.
